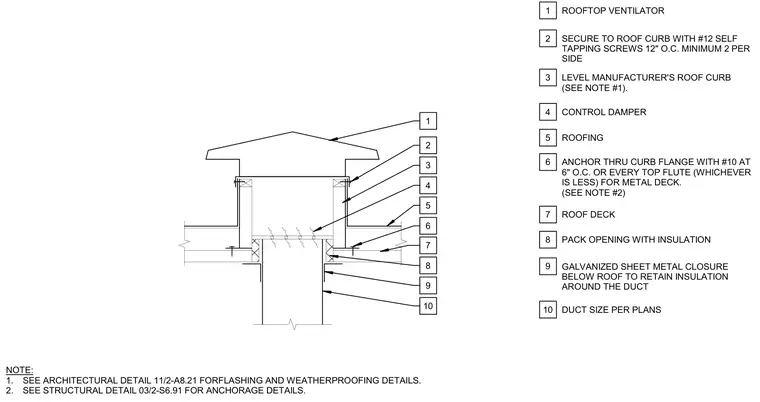

A rooftop ventilator is secured to a manufacturer roof curb using number twelve self-tapping screws spaced at twelve inches on center with a minimum of two per side. The roof curb is anchored through the curb flange with number ten screws at six inches on center or every top flute for a metal deck. A control damper is positioned within the duct opening, which is packed with insulation and supported by a galvanized sheet metal closure below the roof to retain insulation around the duct.
2 3 4 5 7 8 9 10 6 1 ROOFTOP VENTILATOR SECURE TO ROOF CURB WITH #12 SELF TAPPING SCREWS 12" O.C. MINIMUM 2 PER SIDE CONTROL DAMPER LEVEL MANUFACTURER'S ROOF CURB (SEE NOTE #1). NOTE: 1. SEE ARCHITECTURAL DETAIL 11/2-A8.21 FORFLASHING AND WEATHERPROOFING DETAILS. 2. SEE STRUCTURAL DETAIL 03/2-S6.91 FOR ANCHORAGE DETAILS. ROOFING ROOF DECK PACK OPENING WITH INSULATION GALVANIZED SHEET METAL CLOSURE BELOW ROOF TO RETAIN INSULATION AROUND THE DUCT ANCHOR THRU CURB FLANGE WITH #10 AT 6" O.C. OR EVERY TOP FLUTE (WHICHEVER IS LESS) FOR METAL DECK. (SEE NOTE #2) DUCT SIZE PER PLANS 1 2 3 4 5 7 8 9 10 6
