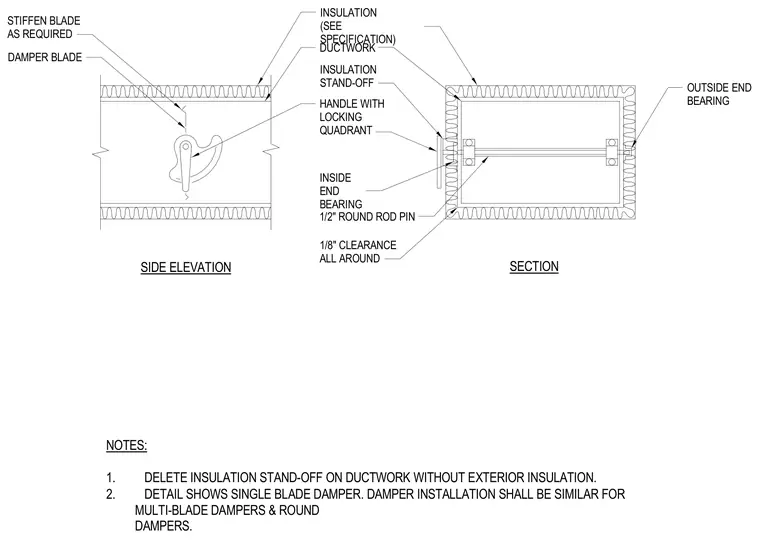

The side elevation and section views show a single-blade volume damper installed within insulated ductwork. A one-half-inch round rod pin extends across the damper, supported by inside and outside end bearings with a one-eighth-inch clearance maintained all around. The damper blade is stiffened as required and operated via a handle with a locking quadrant. Exterior duct insulation is wrapped around an insulation stand-off, which is deleted on uninsulated ductwork per project notes.
NOTES: 1. DELETE INSULATION STAND-OFF ON DUCTWORK WITHOUT EXTERIOR INSULATION. 2. DETAIL SHOWS SINGLE BLADE DAMPER. DAMPER INSTALLATION SHALL BE SIMILAR FOR MULTI-BLADE DAMPERS & ROUND DAMPERS. SIDE ELEVATION SECTION STIFFEN BLADE AS REQUIRED DAMPER BLADE INSULATION (SEE SPECIFICATION) DUCTWORK INSULATION STAND-OFF HANDLE WITH LOCKING QUADRANT INSIDE END BEARING 1/8" CLEARANCE ALL AROUND 1/2" ROUND ROD PIN OUTSIDE END BEARING
