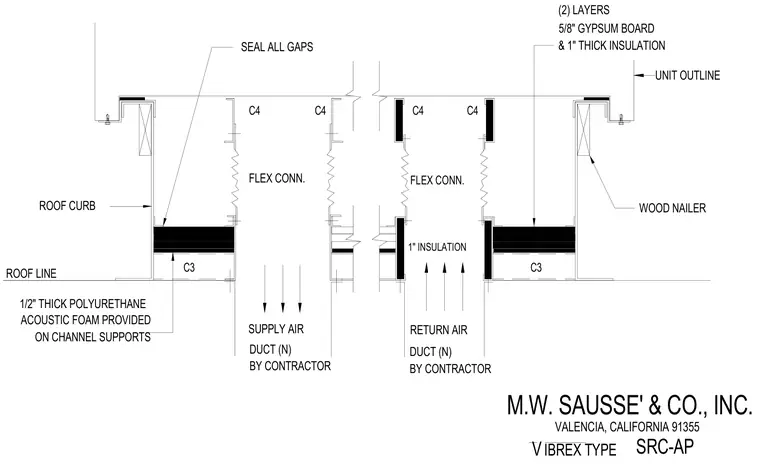

An acoustic roof curb section with a duct collar integrates sound-attenuating construction into roof-mounted mechanical equipment. The assembly features a structural roof curb anchored by wood nailers at the roof line and lined with two layers of five-eighths inch gypsum board and one inch thick insulation. Channel supports carry one-half inch thick polyurethane acoustic foam, with all gaps sealed to prevent air leakage. Flexible connections tie the unit into new supply and return air ducts installed by the contractor.
SRC-AP UNIT OUTLINE ROOF CURB M.W. SAUSSE' & CO., INC. VALENCIA, CALIFORNIA 91355 V IBREX TYPE (2) LAYERS 5/8" GYPSUM BOARD SEAL ALL GAPS SUPPLY AIR RETURN AIR ROOF LINE FLEX CONN. FLEX CONN. DUCT (N) BY CONTRACTOR DUCT (N) BY CONTRACTOR C4 C4 C4 C4 C3 C3 & 1" THICK INSULATION 1/2" THICK POLYURETHANE ACOUSTIC FOAM PROVIDED ON CHANNEL SUPPORTS 1" INSULATION WOOD NAILER
