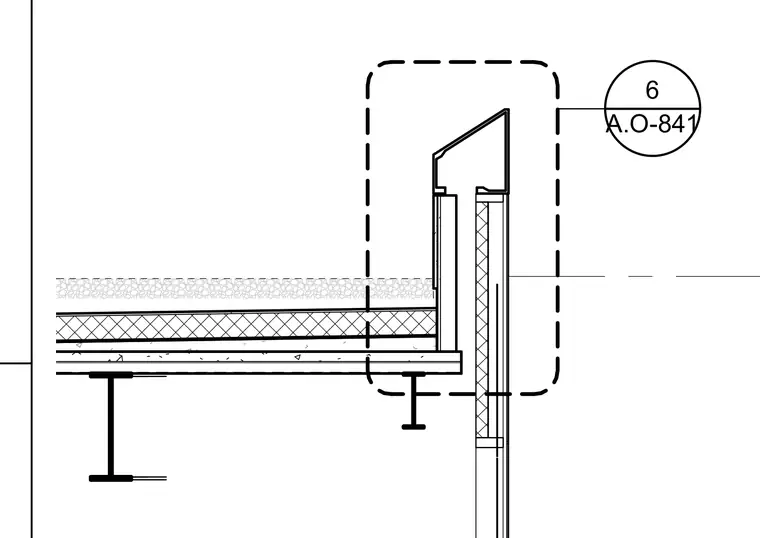

An exterior wall detail showing an aluminum extrusion profile at the top of a metal panel rainscreen assembly. The assembly bears on a structural steel framing system with metal decking and concrete topping. Insulation layers are integrated into both the roof and wall assemblies. The aluminum extrusion caps the vertical metal panel run.
