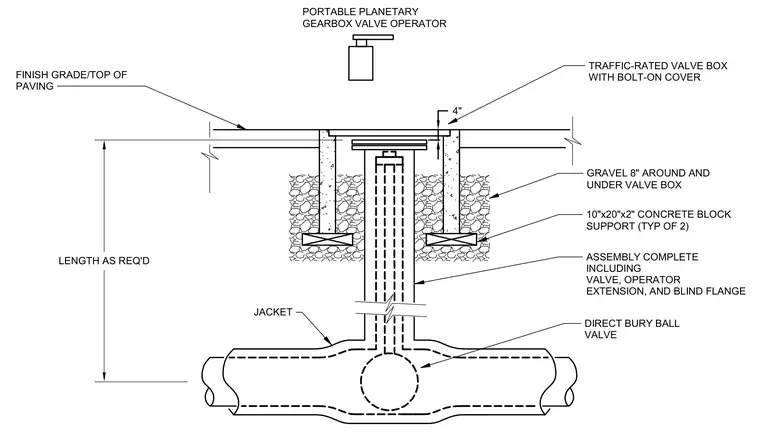

A direct bury ball valve with an insulated jacket connects to the piping system at variable depth below finish grade. The valve assembly includes an operator extension and blind flange operated by a portable planetary gearbox valve operator. A traffic-rated valve box with a bolt-on cover sits flush with the finish grade atop ten-by-twenty-by-two-inch concrete block supports typical of two. Eight inches of gravel surrounds and sits under the valve box assembly for drainage.
TRAFFIC-RATED VALVE BOX WITH BOLT-ON COVER GRAVEL 8" AROUND AND UNDER VALVE BOX ASSEMBLY COMPLETE INCLUDING VALVE, OPERATOR EXTENSION, AND BLIND FLANGE DIRECT BURY BALL VALVE FINISH GRADE/TOP OF PAVING JACKET PORTABLE PLANETARY GEARBOX VALVE OPERATOR 10"x20"x2" CONCRETE BLOCK SUPPORT (TYP OF 2) LENGTH AS REQ'D 4"
