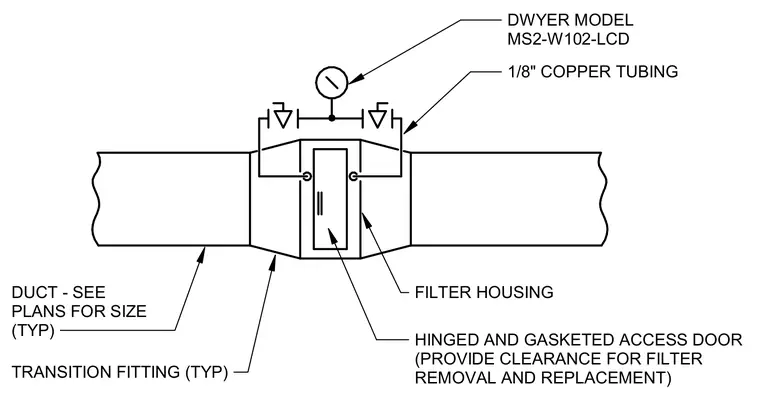

An inline filter housing is installed between ductwork sections using typical transition fittings sized per the mechanical plans. The housing incorporates a hinged and gasketed access door requiring adequate clearance for filter removal and replacement. A Dwyer model MS2-W102-LCD differential pressure gauge connects to the upstream and downstream sides via one-eighth-inch copper tubing.
1/8" COPPER TUBING DUCT - SEE PLANS FOR SIZE (TYP) TRANSITION FITTING (TYP) DWYER MODEL MS2-W102-LCD FILTER HOUSING HINGED AND GASKETED ACCESS DOOR (PROVIDE CLEARANCE FOR FILTER REMOVAL AND REPLACEMENT)
