Wall Mounted Fan Coil in Metal Stud Detail

Materials

Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Walls Ceilings Drainage Connections / Plates

About this detail

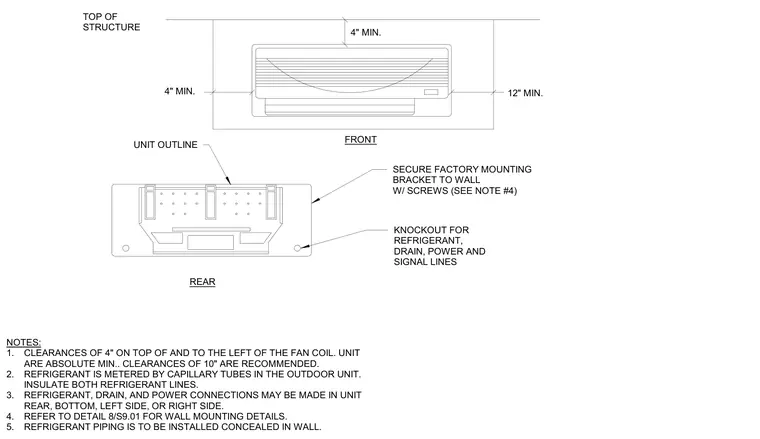

A wall-mounted fan coil unit is secured to a metal stud wall via a factory mounting bracket fastened with screws. Absolute minimum clearances of four inches are maintained on top and to the left of the unit, with ten-inch clearances recommended. Knockouts are provided for concealed refrigerant lines, condensate drain, power supply, and signal lines entering from the rear, bottom, or sides.
