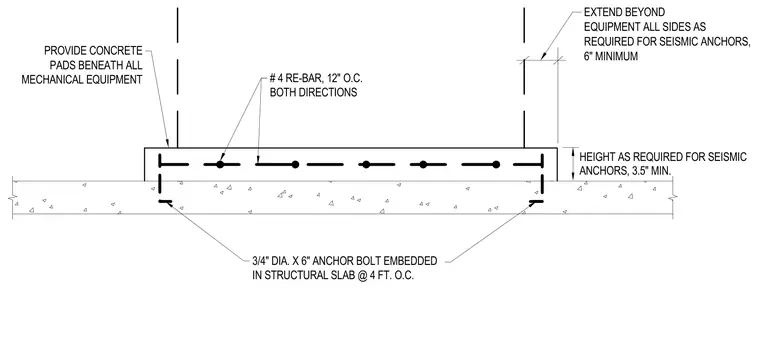

A reinforced concrete housekeeping pad sits atop a structural concrete slab to support mechanical equipment. The pad is reinforced with number four rebar spaced at twelve inches on center in both directions and has a minimum height of three and one-half inches, or greater as required for seismic anchors. The pad extends a minimum of six inches beyond the equipment on all sides. Three-quarter-inch diameter by six-inch anchor bolts are embedded into the structural slab at four feet on center.
HEIGHT AS REQUIRED FOR SEISMIC ANCHORS, 3.5" MIN. 6" MINIMUM REQUIRED FOR SEISMIC ANCHORS, EQUIPMENT ALL SIDES AS EXTEND BEYOND # 4 RE-BAR, 12" O.C. BOTH DIRECTIONS PROVIDE CONCRETE PADS BENEATH ALL MECHANICAL EQUIPMENT 3/4" DIA. X 6" ANCHOR BOLT EMBEDDED IN STRUCTURAL SLAB @ 4 FT. O.C.
