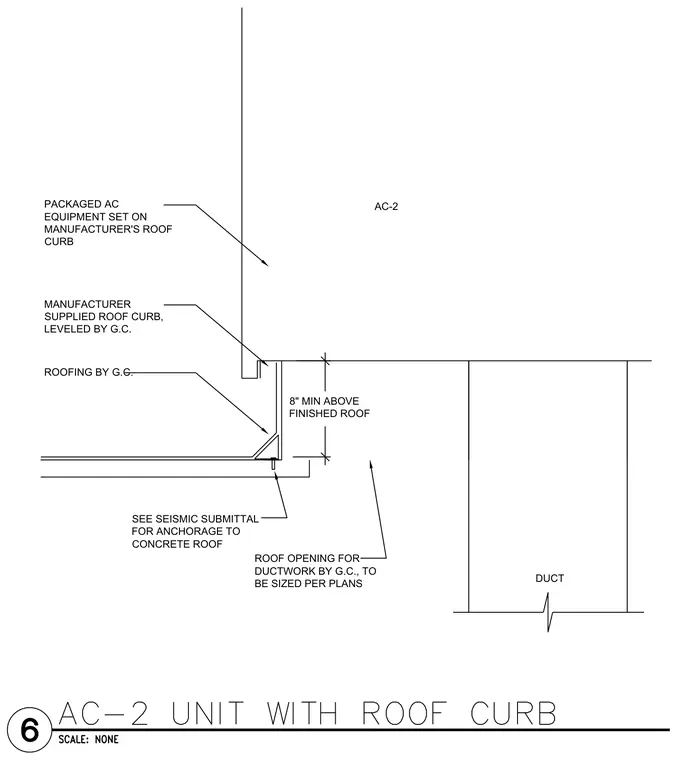

A packaged air conditioning unit is set on a manufacturer-supplied roof curb, which is leveled by the general contractor and anchored to a concrete roof with details per the seismic submittal. The roof curb extends a minimum of eight inches above the finished roof, with roofing installed by the general contractor up to the curb. A roof opening is provided for ductwork sized per the plans.
PACKAGED AC EQUIPMENT SET ON MANUFACTURER'S ROOF CURB MANUFACTURER SUPPLIED ROOF CURB, LEVELED BY G.C. ROOFING BY G.C. 8" MIN ABOVE FINISHED ROOF DUCT ROOF OPENING FOR DUCTWORK BY G.C., TO BE SIZED PER PLANS SEE SEISMIC SUBMITTAL FOR ANCHORAGE TO CONCRETE ROOF AC-2
