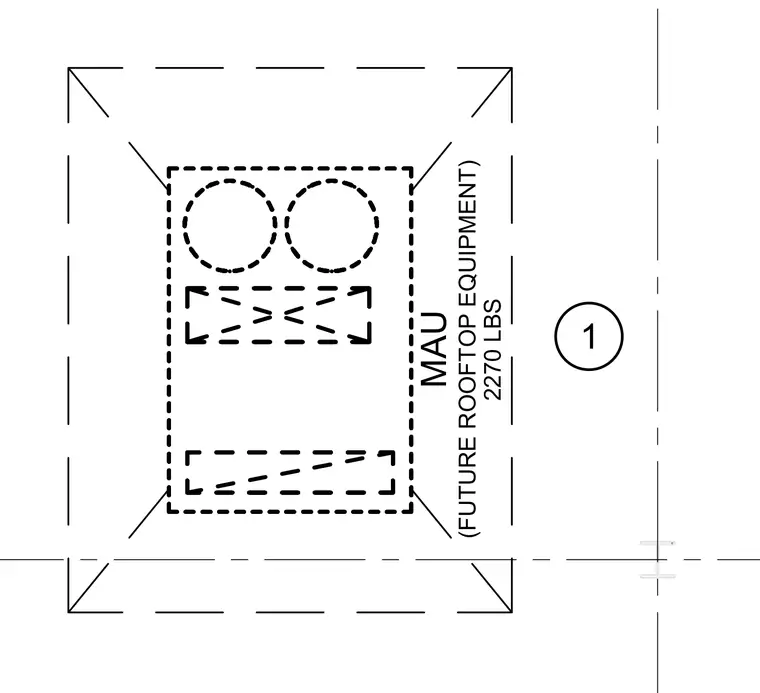

A future rooftop makeup air unit with a total operating weight of 2270 pounds is positioned in plan relative to structural grid lines. The unit outline indicates internal mechanical components including circular duct openings and equipment access zones.
