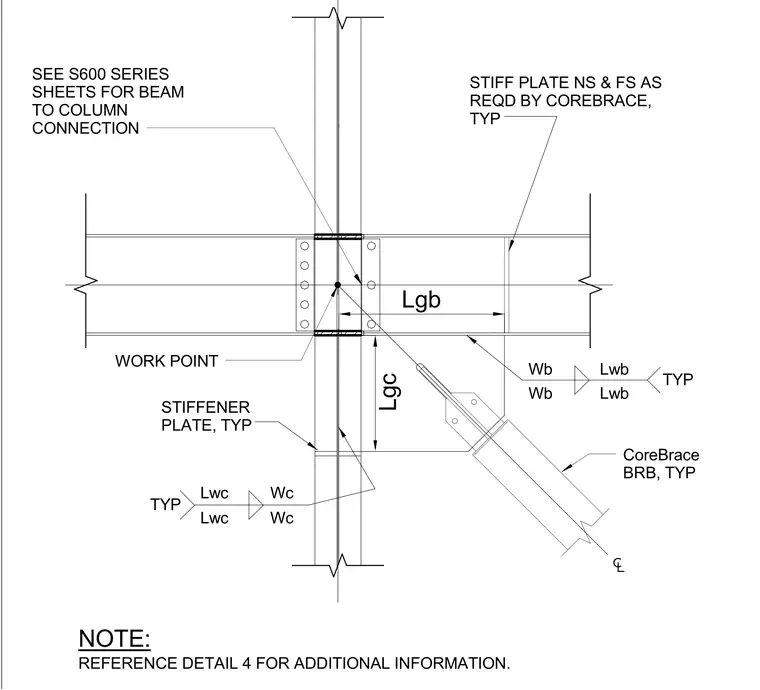

A CoreBrace buckling-restrained brace connects to the weak axis of a steel column with typical stiffener plates on the near side and far side as required by the brace manufacturer. A beam frames into the column with a bolted flange or web connection referenced to the S600 series sheets. Typical weld symbols specify weld sizes for the brace connection plates and column stiffeners around the work point intersection.
WORK POINT Lgb Wc Lwc Wc Lwc Wb Lwb Wb Lwb TYP STIFF PLATE NS & FS AS REQD BY COREBRACE, TYP Lgc TYP NOTE: REFERENCE DETAIL 4 FOR ADDITIONAL INFORMATION. STIFFENER PLATE, TYP SEE S600 SERIES SHEETS FOR BEAM TO COLUMN CONNECTION CoreBrace BRB, TYP
