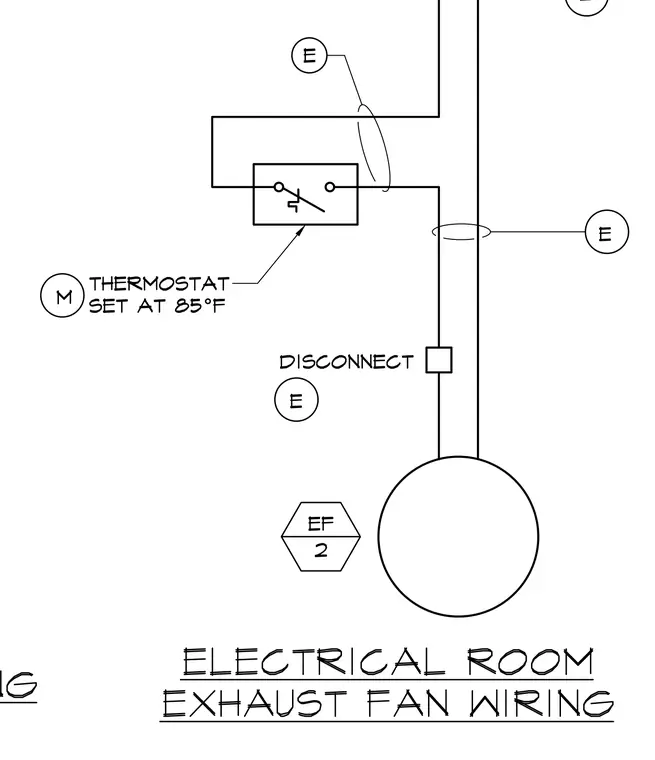

An exhaust fan designated EF 2 connects to an electrical power source through a local disconnect switch. A thermostat set at 85 degrees Fahrenheit is wired into the control circuit to govern fan operation. Electrical wiring runs through conduit with designated circuit connections.
