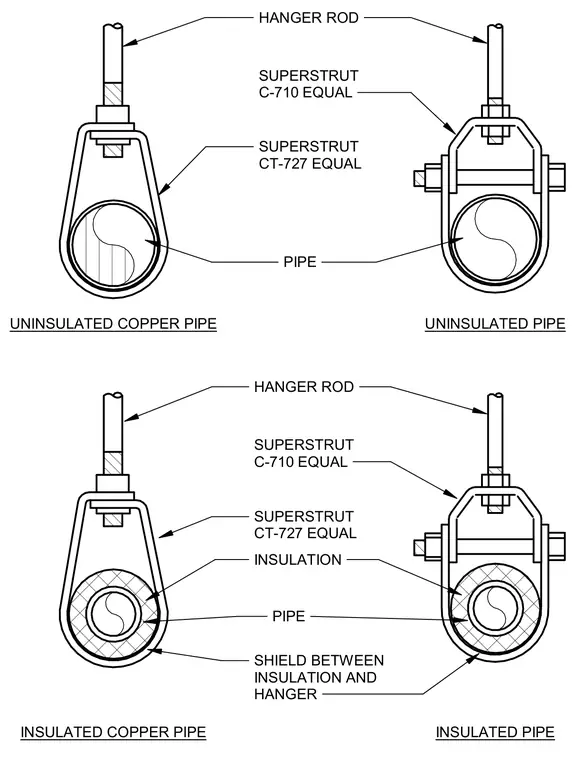

Suspended pipe hangers support insulated and uninsulated piping using threaded hanger rods paired with Superstrut C-710 or equivalent attachments and Superstrut CT-727 or equivalent adjustable clevis hangers. The insulated piping configurations include pipe insulation surrounded by a protective pipe shield positioned between the insulation and the hanger to prevent crushing. Uninsulated copper and standard pipes interface directly with the clevis hanger. Threaded hex nuts secure the hanger rod to the upper bracket assembly.
UNINSULATED PIPE INSULATED PIPE INSULATED COPPER PIPE UNINSULATED COPPER PIPE HANGER ROD SUPERSTRUT C-710 EQUAL SUPERSTRUT CT-727 EQUAL PIPE HANGER ROD SUPERSTRUT C-710 EQUAL SUPERSTRUT CT-727 EQUAL INSULATION PIPE SHIELD BETWEEN INSULATION AND HANGER
