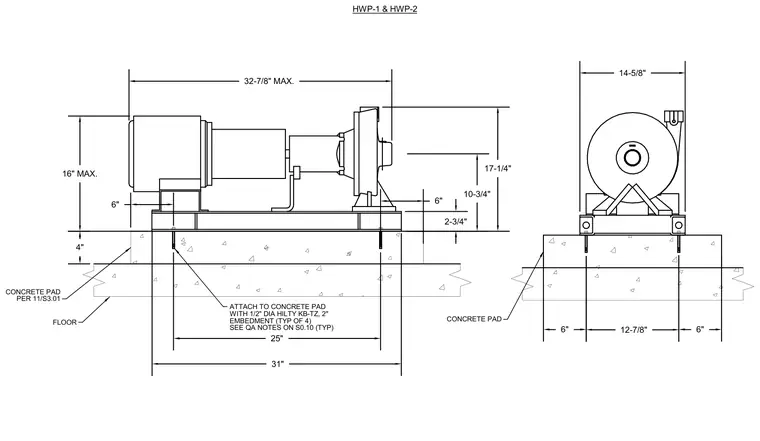

Hydronic pumps HWP-1 and HWP-2 are installed on a structural concrete pad supported by the floor slab. The pump base frame is secured to the concrete pad using four one-half inch diameter Hilty KB-TZ expansion anchors with a two-inch embedment depth. Vertical and horizontal dimensional clearances are established for the pump unit and motor assembly relative to the top of the concrete pad and floor. Quality assurance notes on sheet S0.10 apply to the anchorage installation.
ATTACH TO CONCRETE PAD WITH 1/2" DIA HILTY KB-TZ, 2" EMBEDMENT (TYP OF 4) PER 11/S3.01 FLOOR CONCRETE PAD HWP-1 & HWP-2 CONCRETE PAD SEE QA NOTES ON S0.10 (TYP) 12-7/8" 17-1/4" 31" 32-7/8" MAX. 10-3/4" 2-3/4" 16" MAX. 25" 4" 6" 14-5/8" 6" 6" 6"
