Mechanical · M-YE2EC

Horizontal Fan Coil Mounting

Materials

Steel Timber / Wood Metal (misc.)

Elements

Roofs Decks Waterproofing / Flashing Insulation Site / Paving Connections / Plates Roof / Floor Openings

Connections

Bolted Connection Deck Attachment

About this detail

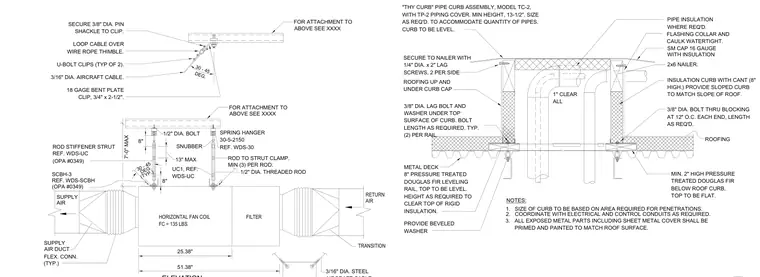

A horizontal fan coil unit weighing one hundred thirty-five pounds is suspended from an overhead structure using half-inch diameter threaded rods, spring hangers, and seismic snubbers with rod stiffener struts. The unit connects to supply air ducts via typical flexible connections and includes a return air filter section. Piping passes through a Thy Curb model TC-2 pipe curb assembly with a TP-2 piping cover, featuring sixteen-gauge sheet metal cap, two-by-six wood nailers, and an eight-inch high insulation curb with cant. The curb bears on eight-inch pressure treated Douglas fir leveling rails fastened with three-eighths-inch diameter lag bolts, beveled washers, and a metal deck roof assembly.
