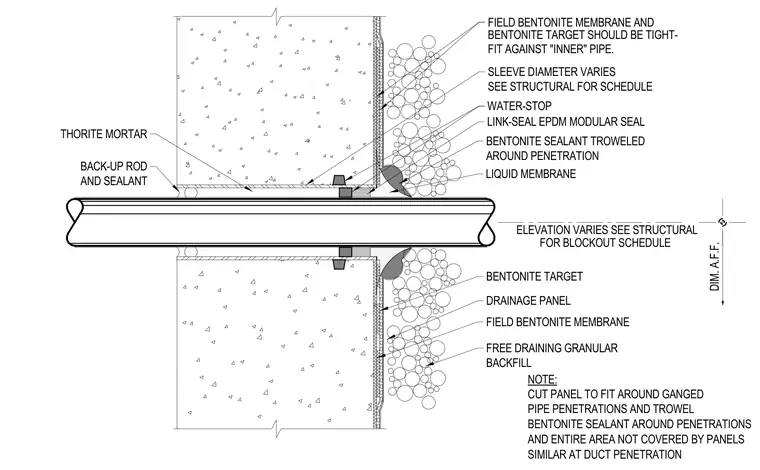

A pipe penetration through a concrete wall is waterproofed using a sleeve with a variable diameter sized per structural schedules and an EPDM modular seal. A field-applied bentonite membrane and bentonite target are tightly fitted against the inner pipe with bentonite sealant troweled around the penetration. A water-stop is embedded in the wall assembly, while liquid membrane, thorite mortar, and a back-up rod with sealant finish the interior side. Drainage panels and free-draining granular backfill are positioned against the exterior wall face.
DIM. A.F.F. FOR BLOCKOUT SCHEDULE ELEVATION VARIES SEE STRUCTURAL BENTONITE TARGET SHOULD BE TIGHT- FIELD BENTONITE MEMBRANE AND FIT AGAINST "INNER" PIPE. SLEEVE DIAMETER VARIES SEE STRUCTURAL FOR SCHEDULE WATER-STOP LINK-SEAL EPDM MODULAR SEAL BENTONITE SEALANT TROWELED AROUND PENETRATION LIQUID MEMBRANE THORITE MORTAR BACK-UP ROD AND SEALANT BENTONITE TARGET DRAINAGE PANEL FIELD BENTONITE MEMBRANE FREE DRAINING GRANULAR BACKFILL NOTE: CUT PANEL TO FIT AROUND GANGED PIPE PENETRATIONS AND TROWEL BENTONITE SEALANT AROUND PENETRATIONS AND ENTIRE AREA NOT COVERED BY PANELS SIMILAR AT DUCT PENETRATION
