Mechanical · M-YBJ23

Air-Cooled Chiller Connection

Materials

Elements

Floors / Slabs Insulation Connections / Plates

About this detail

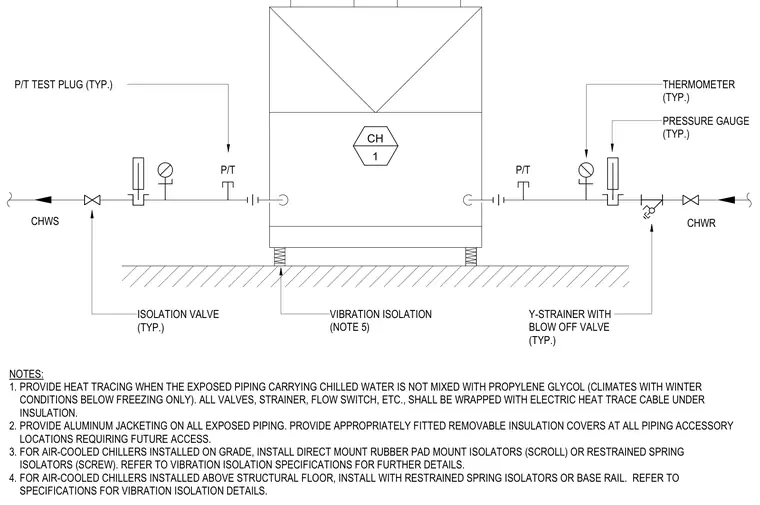

Piping connections for an air-cooled chiller with chilled water supply and return lines. The assembly includes typical isolation valves, test plugs, pressure gauges, thermometers, and a Y-strainer with a blow off valve. Exposed piping requires aluminum jacketing and electric heat trace cable when unmixed with propylene glycol in freezing climates. Vibration isolation is provided via rubber pad mount or restrained spring isolators depending on whether the unit is installed on grade or above a structural floor.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
