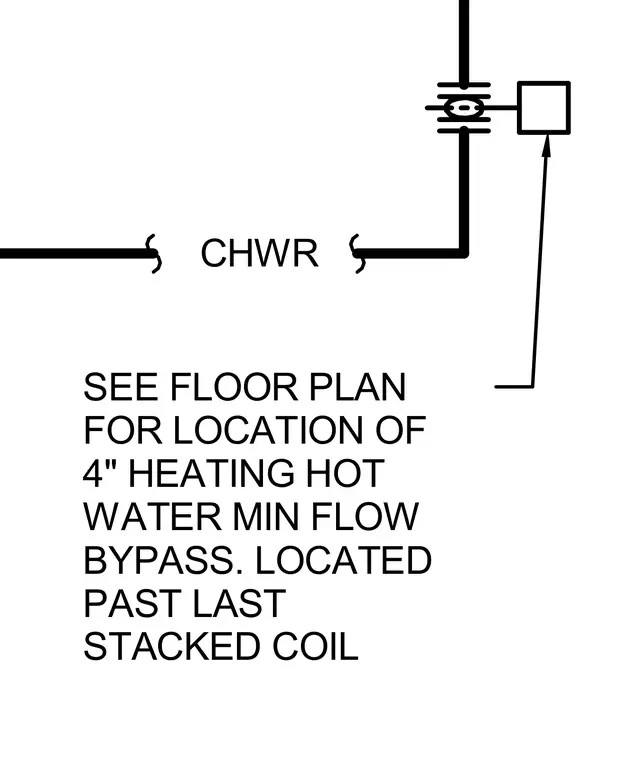

A four-inch heating hot water minimum flow bypass is positioned past the last stacked chilled water return coil as indicated on the floor plan.
SEE FLOOR PLAN FOR LOCATION OF 4" HEATING HOT WATER MIN FLOW BYPASS. LOCATED PAST LAST STACKED COIL CHWR
