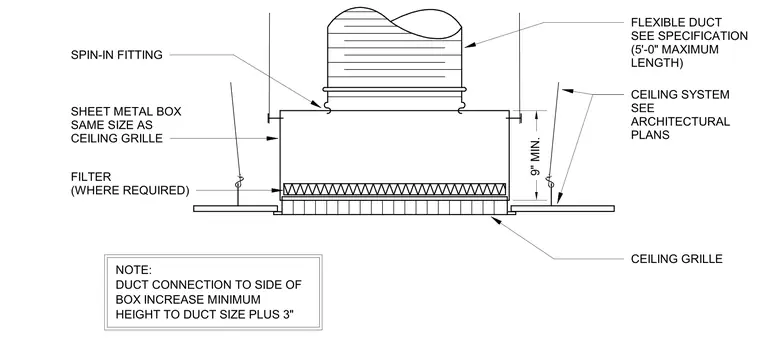

This assembly connects a surface-mounted ceiling grille to a flexible duct through a sheet metal box matching the grille size. A spin-in fitting attaches the flexible duct, which is limited to a five-foot maximum length per specification. A filter is included where required above the grille. The ceiling system is coordinated per architectural plans, maintaining a nine-inch minimum height which increases to the duct size plus three inches when a side duct connection is used.
FLEXIBLE DUCT SEE SPECIFICATION (5'-0" MAXIMUM LENGTH) CEILING SYSTEM SEE ARCHITECTURAL PLANS CEILING GRILLE SPIN-IN FITTING SHEET METAL BOX SAME SIZE AS CEILING GRILLE NOTE: DUCT CONNECTION TO SIDE OF BOX INCREASE MINIMUM HEIGHT TO DUCT SIZE PLUS 3" 9" MIN. FILTER (WHERE REQUIRED)
