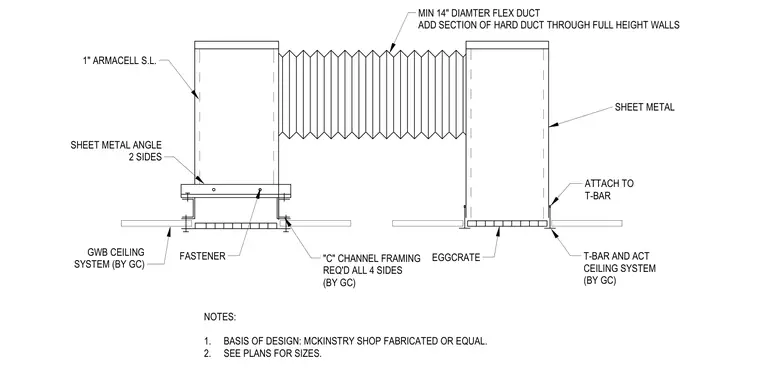

An HVAC supply air grille connects to a minimum fourteen-inch diameter flexible duct with a section of hard duct required through full-height walls. The assembly utilizes sheet metal construction with one-inch Armacell sheet lining and is supported by sheet metal angles on two sides fastened to the framing. C-channel framing is required on all four sides by the general contractor to support the gypsum wallboard ceiling system. The opposite side attaches directly to the T-bar grid of an acoustic ceiling tile system.
SHEET METAL ATTACH TO T-BAR T-BAR AND ACT CEILING SYSTEM (BY GC) EGGCRATE "C" CHANNEL FRAMING REQ'D ALL 4 SIDES (BY GC) FASTENER SHEET METAL ANGLE 2 SIDES GWB CEILING SYSTEM (BY GC) NOTES: 1. BASIS OF DESIGN: MCKINSTRY SHOP FABRICATED OR EQUAL. 2. SEE PLANS FOR SIZES. 1" ARMACELL S.L. MIN 14" DIAMTER FLEX DUCT ADD SECTION OF HARD DUCT THROUGH FULL HEIGHT WALLS
