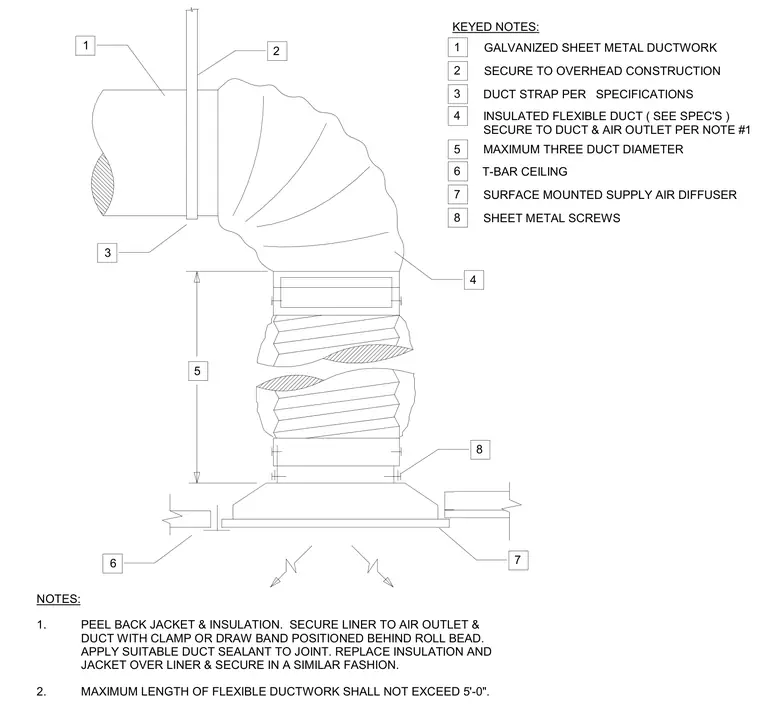

An insulated flexible duct connects a main galvanized sheet metal duct to a surface-mounted supply air diffuser set in a T-bar ceiling. The flexible duct is secured with a clamp or draw band positioned behind the roll bead over a peeled-back jacket and insulation liner, with duct sealant applied to the joint. The flexible duct length is restricted to a maximum of five feet or three duct diameters and supported by overhead construction using duct straps. Sheet metal screws secure the diffuser to the duct drop.
2 SECURE TO OVERHEAD CONSTRUCTION 3 DUCT STRAP PER SPECIFICATIONS 4 INSULATED FLEXIBLE DUCT ( SEE SPEC'S ) SECURE TO DUCT & AIR OUTLET PER NOTE #1 5 6 MAXIMUM THREE DUCT DIAMETER T-BAR CEILING 7 SURFACE MOUNTED SUPPLY AIR DIFFUSER GALVANIZED SHEET METAL DUCTWORK 1 8 SHEET METAL SCREWS NOTES: 1. PEEL BACK JACKET & INSULATION. SECURE LINER TO AIR OUTLET & DUCT WITH CLAMP OR DRAW BAND POSITIONED BEHIND ROLL BEAD. APPLY SUITABLE DUCT SEALANT TO JOINT. REPLACE INSULATION AND JACKET OVER LINER & SECURE IN A SIMILAR FASHION. 2. MAXIMUM LENGTH OF FLEXIBLE DUCTWORK SHALL NOT EXCEED 5'-0". 6 5 3 1 2 4 8 7 KEYED NOTES:
