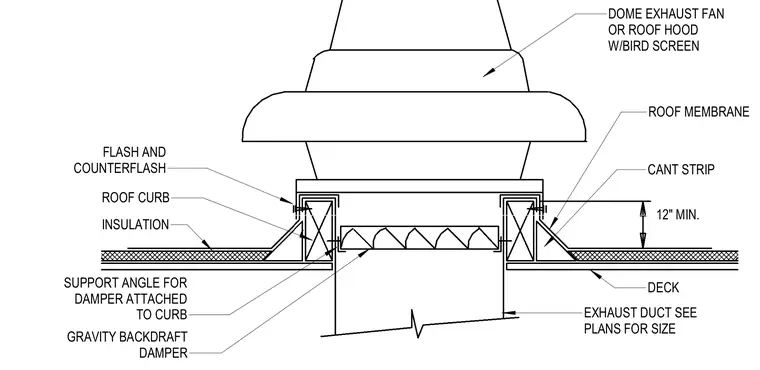

A dome exhaust fan or roof hood with a bird screen is mounted on top of a raised roof curb supported by the roof deck. The assembly features continuous insulation and a cant strip, all sealed by a roof membrane with flash and counterflash details extending a minimum of 12 inches. An exhaust duct passes through the deck penetration, sized per the architectural and mechanical plans. A gravity backdraft damper is integrated into the opening, supported by an angle attached directly to the interior of the curb.
12" MIN. GRAVITY BACKDRAFT DAMPER FLASH AND COUNTERFLASH ROOF CURB INSULATION SUPPORT ANGLE FOR DAMPER ATTACHED TO CURB ROOF MEMBRANE DECK EXHAUST DUCT SEE PLANS FOR SIZE CANT STRIP DOME EXHAUST FAN OR ROOF HOOD W/BIRD SCREEN
