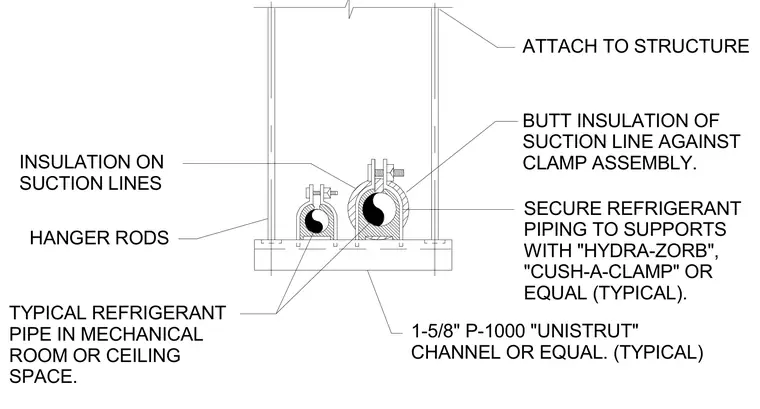

Suspended refrigerant piping is supported by a horizontal one and five-eighths inch P-1000 Unistrut channel attached to structural hanger rods. The insulated suction lines butt directly against the clamp assembly and are secured using Hydra-Zorb, Cush-A-Clamp, or an approved equal. Insulation is maintained continuously on the suction lines within mechanical rooms and ceiling spaces.
INSULATION ON SUCTION LINES TYPICAL REFRIGERANT PIPE IN MECHANICAL ROOM OR CEILING SPACE. ATTACH TO STRUCTURE BUTT INSULATION OF SUCTION LINE AGAINST CLAMP ASSEMBLY. SECURE REFRIGERANT PIPING TO SUPPORTS WITH "HYDRA-ZORB", "CUSH-A-CLAMP" OR EQUAL (TYPICAL). 1-5/8" P-1000 "UNISTRUT" CHANNEL OR EQUAL. (TYPICAL) HANGER RODS
