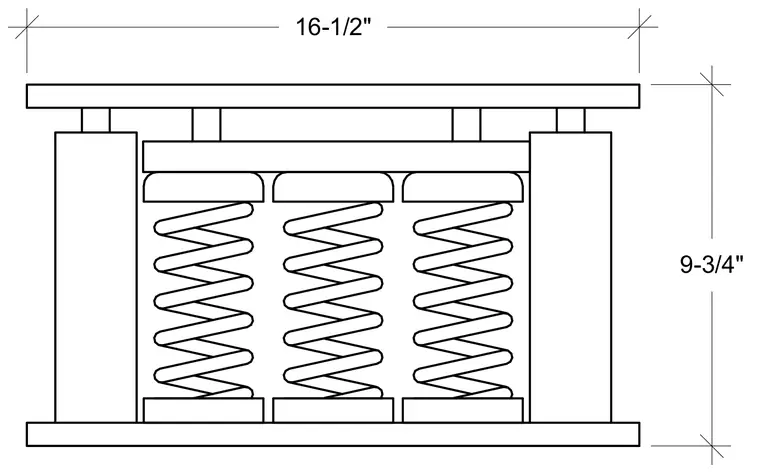

This multi-spring vibration isolator assembly consists of three vertical coil springs captured between a bottom base plate and an intermediate top plate, all enclosed within vertical side housing members and capped by a top bearing plate. Overall dimensions measure 16-1/2 inches in width by 9-3/4 inches in height. Four spacers connect the intermediate top plate to the uppermost bearing plate to distribute loads evenly across the isolator unit.
