Flexible duct connection linking the fan housing to the main ductwork via a specified flexible material sleeve. The sleeve is secured at each end with a 1-inch by 1/8-inch draw band and band iron, fastened with sheet metal screws spaced 12 inches on center and rivets spaced 4 inches on center. The fan side utilizes a flanged connection with bolts on 4-inch centers, washers, and a 5/16-inch flange. The installation maintains a minimum of 1-1/2 inches to a maximum of 3 inches installed, with 6 inches nominal when the material is taut.

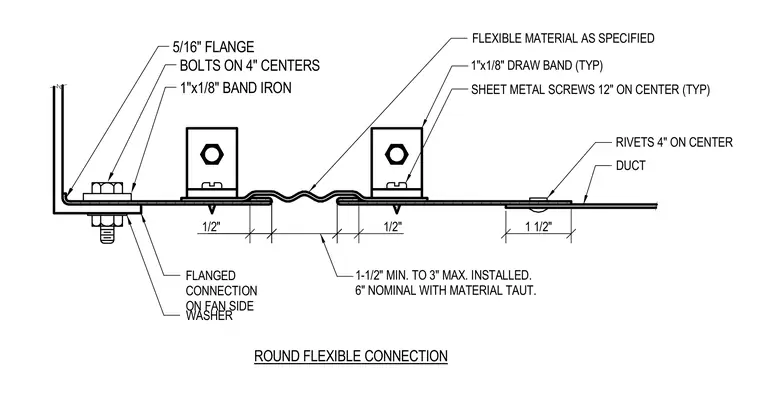

1/2" 1/2" 1 1/2" ROUND FLEXIBLE CONNECTION 1"x1/8" DRAW BAND (TYP) 1"x1/8" BAND IRON BOLTS ON 4" CENTERS 5/16" FLANGE SHEET METAL SCREWS 12" ON CENTER (TYP) RIVETS 4" ON CENTER DUCT 1-1/2" MIN. TO 3" MAX. INSTALLED. 6" NOMINAL WITH MATERIAL TAUT. WASHER FLANGED CONNECTION ON FAN SIDE FLEXIBLE MATERIAL AS SPECIFIED
