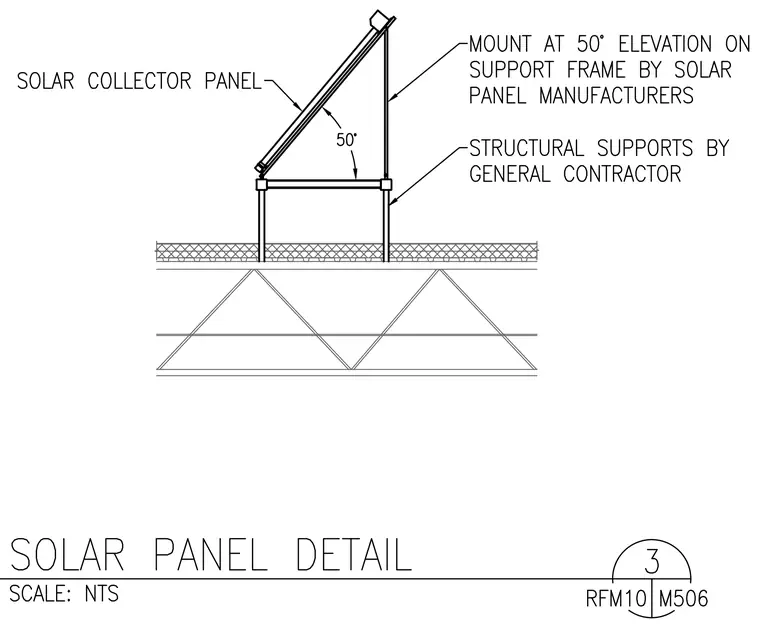

A solar collector panel is mounted at a fifty degree elevation on a support frame provided by the solar panel manufacturer. The underlying structural supports are installed by the general contractor and penetrate through the roof assembly. The panel is angled at fifty degrees relative to the horizontal support framing.
