Mechanical · M-Y2YSZ

Flow Switch Detail

Materials

Elements

About this detail

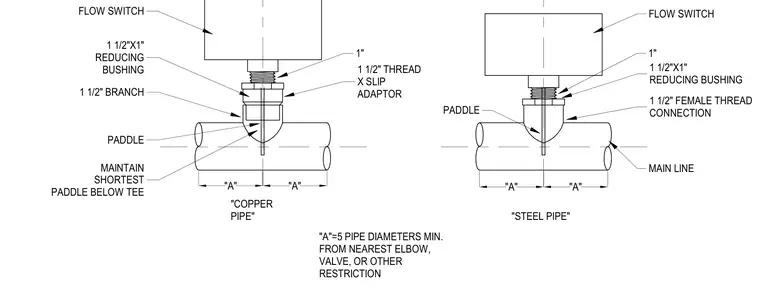

The flow switch installation requires maintaining a minimum distance of five pipe diameters upstream and downstream from any nearest elbow, valve, or other flow restriction. On the copper pipe assembly, a one-inch connection steps up through a one-and-one-half-inch by one-inch reducing bushing and a one-and-one-half-inch thread-by-slip adaptor into the branch tee. On the steel pipe assembly, the switch connects via a one-inch thread into a one-and-one-half-inch by one-inch reducing bushing and a one-and-one-half-inch female thread connection. The internal paddle extends directly into the main line flow, with the shortest paddle maintained below the tee.
