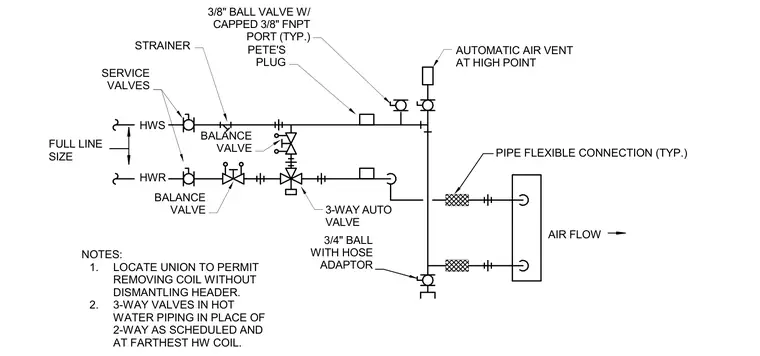

Hot water supply (HWS) and hot water return (HWR) piping connects to the heating coil through full line size service valves and a strainer. A 3-way automatic valve regulates flow in conjunction with balance valves on both lines. Flexible pipe connections absorb movement at the coil interface, while unions are positioned to allow coil removal without dismantling the header. Additional components include a Pete's plug, a 3/8-inch ball valve with a capped 3/8-inch female national pipe thread port, a 3/4-inch ball valve with a hose adaptor, and an automatic air vent located at the high point.
PIPE FLEXIBLE CONNECTION (TYP.) 3-WAY AUTO VALVE BALANCE VALVE BALANCE VALVE 3/8" BALL VALVE W/ CAPPED 3/8" FNPT PORT (TYP.) AUTOMATIC AIR VENT AT HIGH POINT NOTES: 1. LOCATE UNION TO PERMIT REMOVING COIL WITHOUT DISMANTLING HEADER. 2. 3-WAY VALVES IN HOT WATER PIPING IN PLACE OF 2-WAY AS SCHEDULED AND AT FARTHEST HW COIL. SERVICE VALVES HWS HWR FULL LINE SIZE STRAINER PETE'S PLUG AIR FLOW 3/4" BALL WITH HOSE ADAPTOR
