Mechanical · M-XXN8M

Boiler Piping Detail

Materials

Elements

Doors Drainage Connections / Plates Reinforcing

About this detail

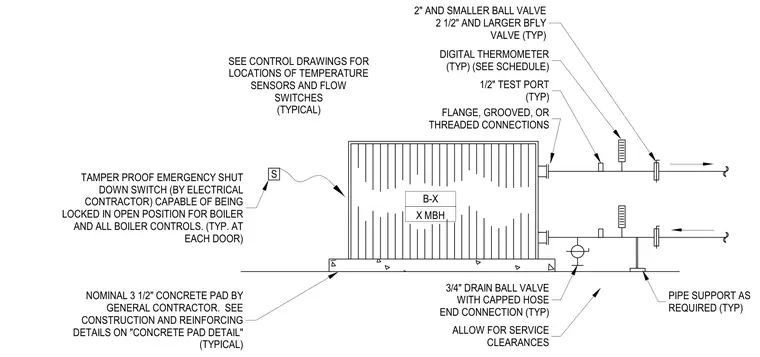

The boiler rests on a nominal three-and-a-half-inch concrete pad provided by the general contractor with reinforcing detailed separately. Piping connections utilize flanged, grooved, or threaded fittings equipped with ball valves, butterfly valves, digital thermometers, and test ports. A drain ball valve with a capped hose end connection is installed on the piping alongside required pipe supports and service clearances. A tamper-proof emergency shut-down switch capable of being locked in the open position is located at each door, while control drawings dictate the locations of temperature sensors and flow switches.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
