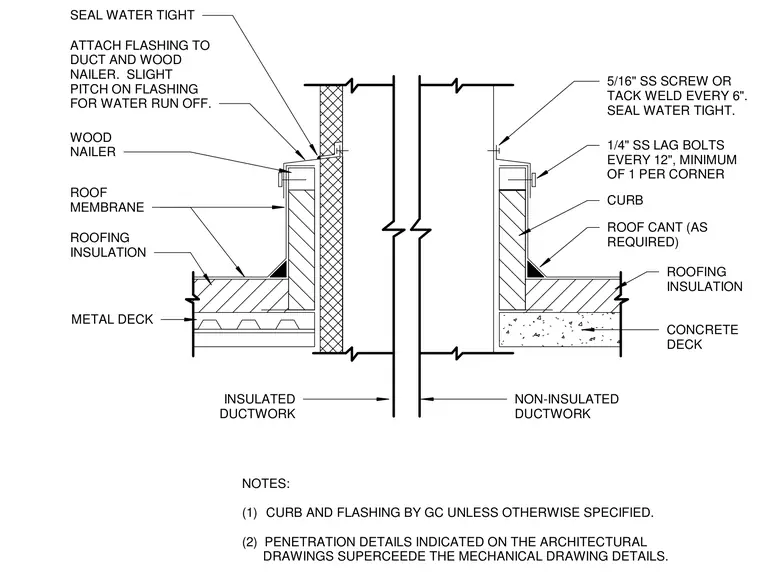

Mechanical duct penetrations pass through insulated metal deck and concrete roof assemblies. A wood nailer sits atop the roof curb, providing an attachment base for sheet metal flashing secured with five-sixteenth-inch stainless steel screws or tack welds spaced at six inches on center with continuous water-tight sealing. One-quarter-inch stainless steel lag bolts spaced at twelve inches on center secure the vertical flashing connections with a minimum of one bolt per corner. A roof cant strip transitions the deck to the vertical curb, which is covered by continuous roof membrane and roofing insulation. Insulated and non-insulated ductwork options pass vertically through the roof plane, with a slight pitch engineered into the flashing to promote positive drainage.
NOTES: (1) CURB AND FLASHING BY GC UNLESS OTHERWISE SPECIFIED. (2) PENETRATION DETAILS INDICATED ON THE ARCHITECTURAL DRAWINGS SUPERCEEDE THE MECHANICAL DRAWING DETAILS. INSULATED DUCTWORK NON-INSULATED DUCTWORK METAL DECK ROOFING INSULATION ROOF MEMBRANE WOOD NAILER ATTACH FLASHING TO DUCT AND WOOD NAILER. SLIGHT PITCH ON FLASHING FOR WATER RUN OFF. SEAL WATER TIGHT 5/16" SS SCREW OR TACK WELD EVERY 6". SEAL WATER TIGHT. 1/4" SS LAG BOLTS EVERY 12", MINIMUM OF 1 PER CORNER CURB ROOF CANT (AS REQUIRED) ROOFING INSULATION CONCRETE DECK
