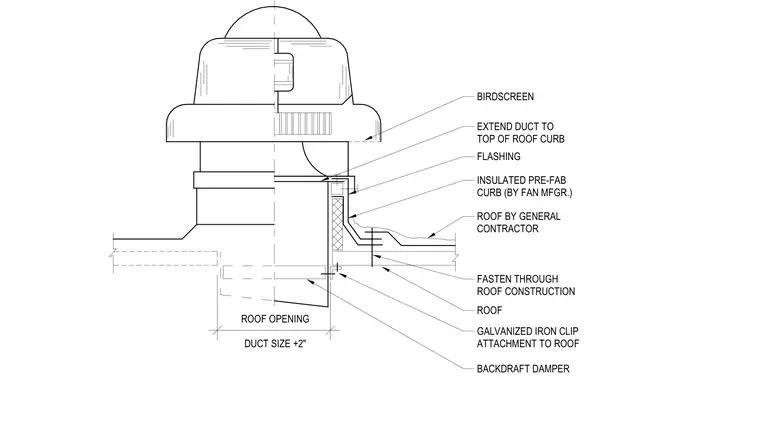

An insulated prefabricated roof curb provided by the fan manufacturer mounts over a roof opening sized two inches larger than the duct. The exhaust fan features an integrated birdscreen and a duct that extends to the top of the roof curb. Flashing ties the curb into the surrounding roof construction provided by the general contractor. A backdraft damper is installed at the base of the duct connection. Galvanized iron clips secure the assembly to the roof structure.
BIRDSCREEN EXTEND DUCT TO TOP OF ROOF CURB FLASHING ROOF BY GENERAL CONTRACTOR FASTEN THROUGH ROOF CONSTRUCTION ROOF GALVANIZED IRON CLIP ATTACHMENT TO ROOF ROOF OPENING DUCT SIZE +2" INSULATED PRE-FAB CURB (BY FAN MFGR.) BACKDRAFT DAMPER
