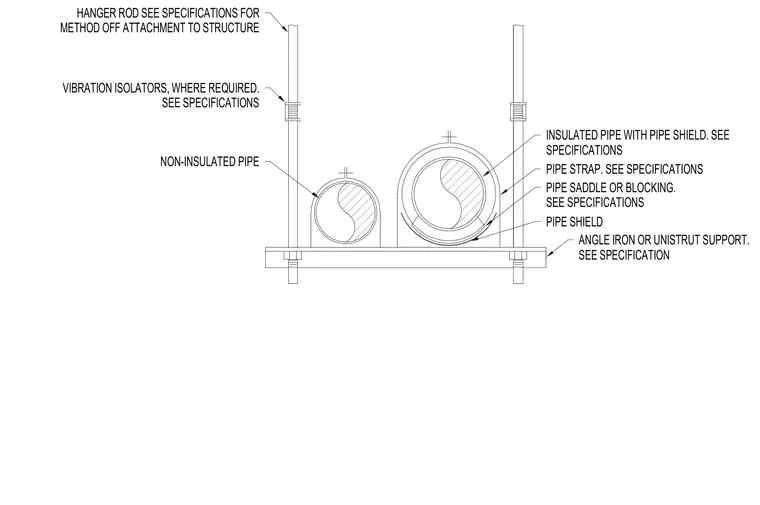

The trapeze support assembly consists of a horizontal angle iron or Unistrut member suspended from the building structure by vertical hanger rods. Vibration isolators are installed within the hanger rods where required. Non-insulated and insulated pipes rest upon the support member, secured with pipe straps, pipe saddles, or blocking. An insulated pipe shield protects the insulation at the support point.
HANGER ROD SEE SPECIFICATIONS FOR METHOD OFF ATTACHMENT TO STRUCTURE NON-INSULATED PIPE VIBRATION ISOLATORS, WHERE REQUIRED. SEE SPECIFICATIONS INSULATED PIPE WITH PIPE SHIELD. SEE SPECIFICATIONS PIPE STRAP. SEE SPECIFICATIONS PIPE SADDLE OR BLOCKING. SEE SPECIFICATIONS ANGLE IRON OR UNISTRUT SUPPORT. SEE SPECIFICATION PIPE SHIELD
