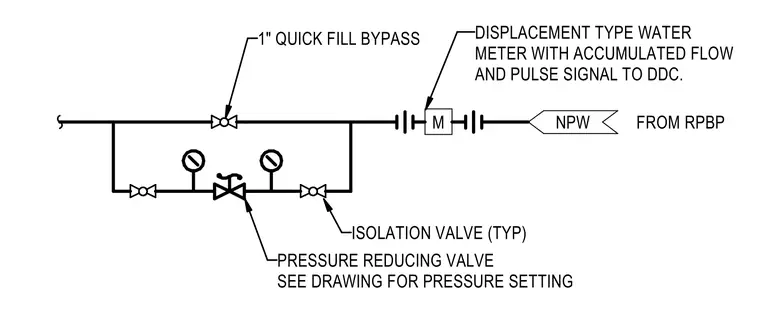

This hydronic fill assembly receives non-potable water from a reduced pressure backflow preventer. The main line includes a displacement type water meter equipped with an accumulated flow and pulse signal output to the direct digital control system. A parallel one-inch quick fill bypass line allows for rapid system charging. The bypass circuit incorporates a pressure reducing valve, with the specific pressure setting determined by the project drawings, flanked by pressure gauges and typical isolation valves on both sides.
