Suspended mechanical services are supported by a hanger strap wrapped around the equipment and secured with a three-eighths-inch-diameter ASTM A307 bolt. A band of the same size as the hanger strap wraps the assembly with a maximum thirty-six-inch diameter. A typical reference callout directs the builder to sheet S1.34 detail 2B for the brace attachment.

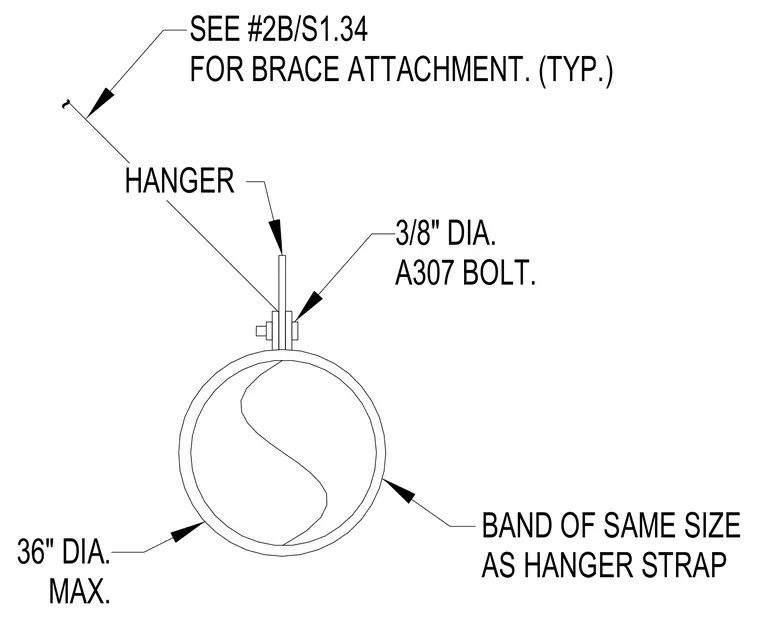

BAND OF SAME SIZE AS HANGER STRAP 3/8" DIA. A307 BOLT. HANGER 36" DIA. MAX. ~ SEE #2B/S1.34 FOR BRACE ATTACHMENT. (TYP.)
