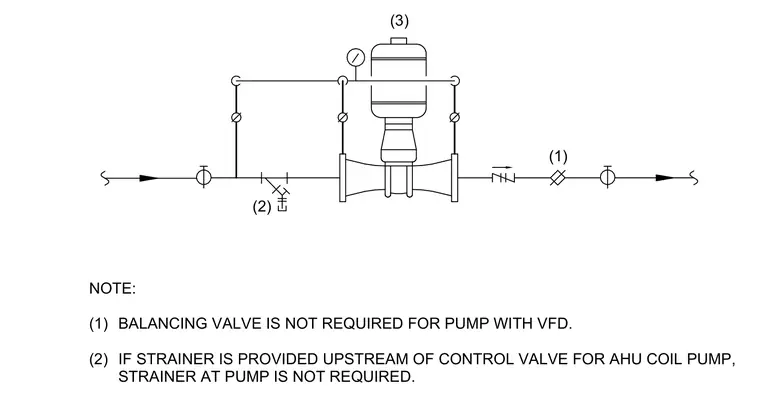

An in-line pump assembly with an upstream strainer connected in the piping loop. The schematic shows isolation valves, a balancing valve, and pressure gauges arranged around the pump. A balancing valve is omitted when a variable frequency drive is present. The strainer is omitted if another strainer is already located upstream of the control valve for an air handling unit coil pump.
NOTE: (1) BALANCING VALVE IS NOT REQUIRED FOR PUMP WITH VFD. (2) IF STRAINER IS PROVIDED UPSTREAM OF CONTROL VALVE FOR AHU COIL PUMP, STRAINER AT PUMP IS NOT REQUIRED. (2) (1) (3)
