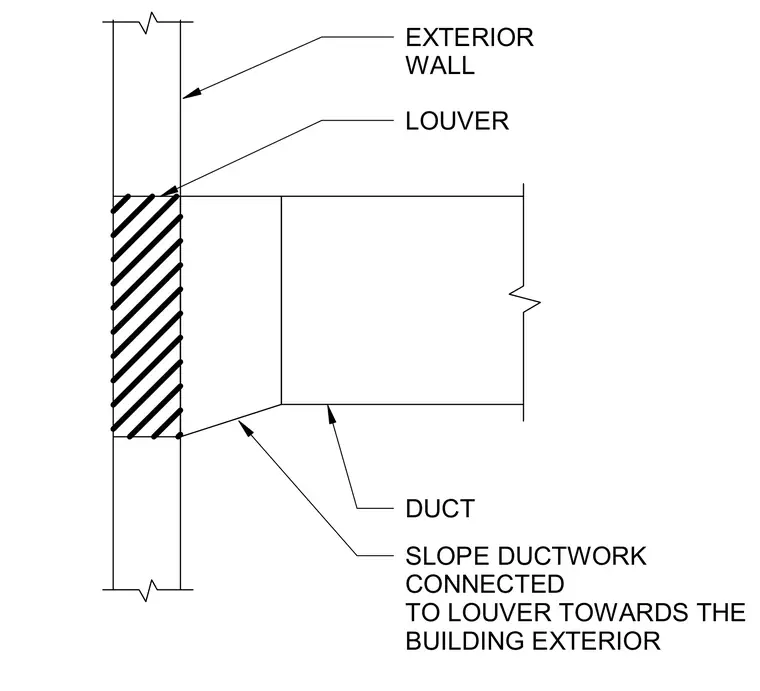

Ductwork connects directly to a louver mounted within an exterior wall opening. The duct transition slopes downward toward the building exterior to facilitate drainage.
LOUVER EXTERIOR WALL SLOPE DUCTWORK CONNECTED TO LOUVER TOWARDS THE BUILDING EXTERIOR DUCT
