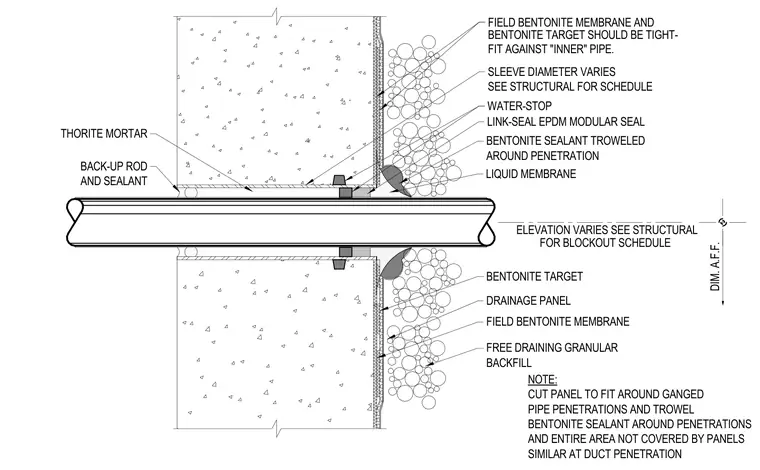

A pipe penetration passes through a concrete wall with a variable sleeve diameter sized per the structural schedule. A field bentonite membrane and bentonite target are tight-fitted against the inner pipe, supplemented by a troweled bentonite sealant around the penetration and liquid membrane. An EPDM modular water-stop link-seal is installed within the assembly alongside thorite mortar. The exterior side features a drainage panel against the bentonite membrane backed by free draining granular backfill. The interior opening is finished with a back-up rod and sealant.
DIM. A.F.F. FOR BLOCKOUT SCHEDULE ELEVATION VARIES SEE STRUCTURAL BENTONITE TARGET SHOULD BE TIGHT- FIELD BENTONITE MEMBRANE AND FIT AGAINST "INNER" PIPE. SLEEVE DIAMETER VARIES SEE STRUCTURAL FOR SCHEDULE WATER-STOP LINK-SEAL EPDM MODULAR SEAL BENTONITE SEALANT TROWELED AROUND PENETRATION LIQUID MEMBRANE THORITE MORTAR BACK-UP ROD AND SEALANT BENTONITE TARGET DRAINAGE PANEL FIELD BENTONITE MEMBRANE FREE DRAINING GRANULAR BACKFILL NOTE: CUT PANEL TO FIT AROUND GANGED PIPE PENETRATIONS AND TROWEL BENTONITE SEALANT AROUND PENETRATIONS AND ENTIRE AREA NOT COVERED BY PANELS SIMILAR AT DUCT PENETRATION
