Mechanical · M-XHRSN

Refrigerant to Water Heat Exchanger

Elements

About this detail

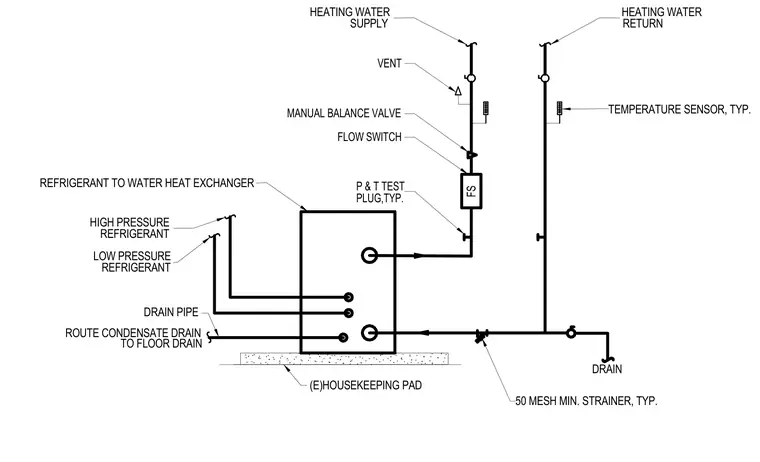

The refrigerant to water heat exchanger sits on an existing housekeeping pad and connects to high and low-pressure refrigerant lines, a condensate drain, and heating water supply and return piping. The heating water loop includes a manual balance valve, flow switch, temperature sensors, pressure and temperature test plugs, vents, and a fifty-mesh minimum strainer. A drain pipe routes condensate to a floor drain.
