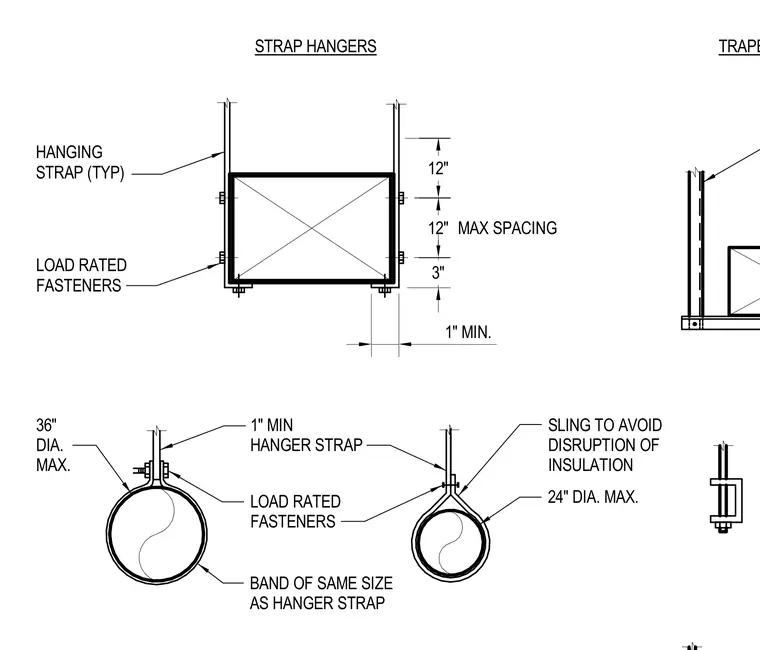

Rectangular and round ductwork is supported by one-inch minimum hanger straps secured with load-rated fasteners. Insulated round ducts incorporate a sling of the same size as the hanger strap to avoid disruption of the insulation. Strap spacing and edge clearances are dimensioned for installation.
36" DIA. MAX. 24" DIA. MAX. LOAD RATED FASTENERS 1" MIN HANGER STRAP BAND OF SAME SIZE AS HANGER STRAP SLING TO AVOID DISRUPTION OF INSULATION LOAD RATED FASTENERS HANGING STRAP (TYP) MAX SPACING STRAP HANGERS TRAPEZE HANGERS 1" MIN. 3" 12" 12"
