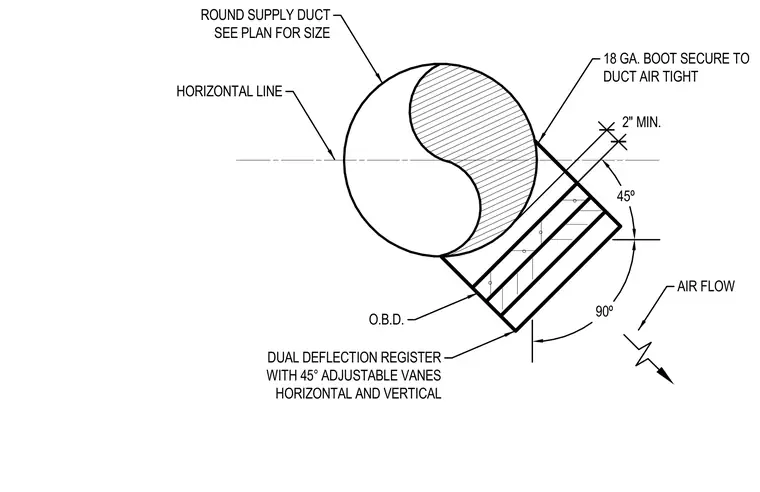

An eighteen gauge boot secures airtight to a round supply duct, sized per plan. The assembly features an opposed blade damper and a dual deflection register with forty-five degree adjustable horizontal and vertical vanes set at a forty-five degree angle to the horizontal line with a two inch minimum clearance.
ROUND SUPPLY DUCT SEE PLAN FOR SIZE 18 GA. BOOT SECURE TO DUCT AIR TIGHT AIR FLOW 2" MIN. 90º 45º HORIZONTAL LINE O.B.D. DUAL DEFLECTION REGISTER WITH 45° ADJUSTABLE VANES HORIZONTAL AND VERTICAL
