Mechanical · M-XEEWS

Roof Pipe Support Rail Detail

Materials

Steel

Elements

Roofs Waterproofing / Flashing Insulation Anchors / Embeds

Connections

Bolted Connection

About this detail

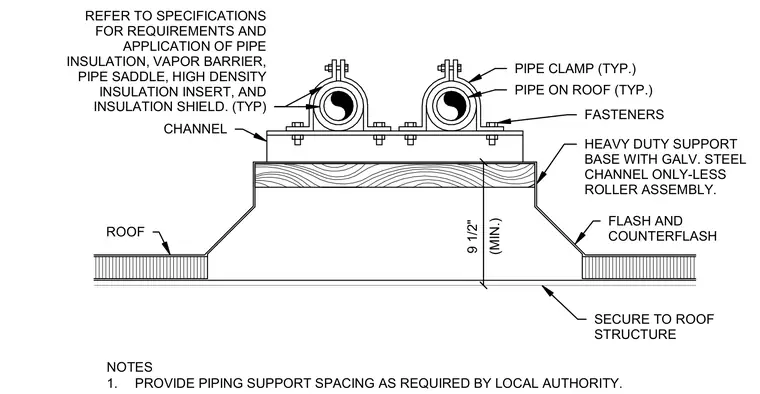

Roof-mounted piping sits within pipe clamps secured to a galvanized steel channel resting on a heavy-duty support base. Flash and counterflash components seal the roof penetration. Fasteners anchor the channel assembly to the base while maintaining a minimum nine-and-one-half-inch clearance. Insulation, vapor barriers, saddles, and shields are provided per project specifications.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
