Mechanical · M-XC3PT

Wall Fan and Filter Assembly Detail

Materials

Elements

About this detail

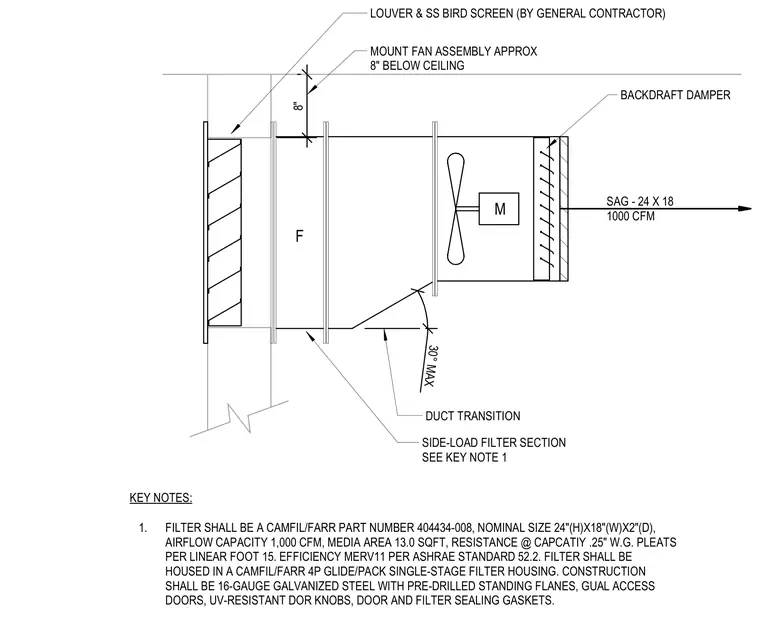

This wall fan assembly features an exterior louver and stainless steel bird screen provided by the general contractor, mounted alongside a side-load filter section. The fan assembly is positioned approximately eight inches below the ceiling level and includes a thirty-degree maximum duct transition. The system incorporates a backdraft damper and connects to a twenty-four by eighteen supply air grille delivering one thousand cubic feet per minute. The filter section utilizes a sixteen-gauge galvanized steel housing with pre-drilled standing flanges, dual access doors with UV-resistant door knobs, and sealing gaskets for a MERV11 pleated filter.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
