An expansion tank mounts onto a new concrete housekeeping pad using a base plate with an eight-bolt circle and provided bolts with nuts. The tank connects to the side of the hot water supply main to prevent air or debris from entering the pipe. Piping includes a shut-off ball valve required to properly precharge the tank, a drain valve, an automatic air vent such as a Bell & Gossett model number 7 or 87, and an anti-thermo-siphon loop featuring a twelve-inch minimum drop. A new three-quarter-inch make-up water line ties into the assembly alongside a pressure gauge ranging from zero to sixty pounds per square inch with a gauge cock. The tank is fully insulated and provided with a protective metal jacket.

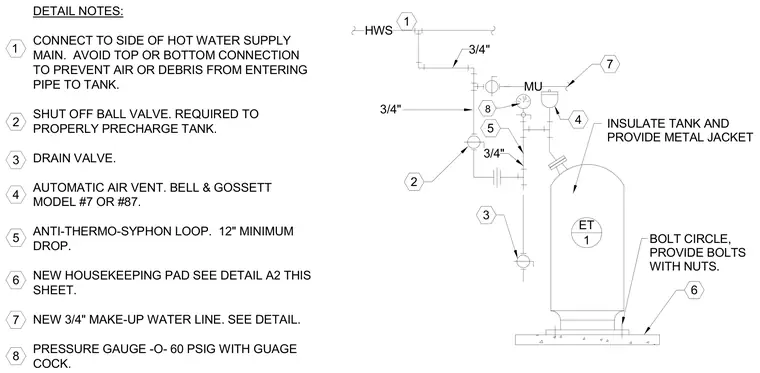

MU DETAIL NOTES: CONNECT TO SIDE OF HOT WATER SUPPLY MAIN. AVOID TOP OR BOTTOM CONNECTION TO PREVENT AIR OR DEBRIS FROM ENTERING PIPE TO TANK. SHUT OFF BALL VALVE. REQUIRED TO PROPERLY PRECHARGE TANK. DRAIN VALVE. AUTOMATIC AIR VENT. BELL & GOSSETT MODEL #7 OR #87. ANTI-THERMO-SYPHON LOOP. 12" MINIMUM DROP. NEW HOUSEKEEPING PAD SEE DETAIL A2 THIS SHEET. NEW 3/4" MAKE-UP WATER LINE. SEE DETAIL. PRESSURE GAUGE -O- 60 PSIG WITH GUAGE COCK. 3/4" 3/4" INSULATE TANK AND PROVIDE METAL JACKET 8 BOLT CIRCLE, PROVIDE BOLTS WITH NUTS. 1 2 3 4 5 6 7 8 1 5 2 4 7 3 ET 1 6 HWS 3/4"
