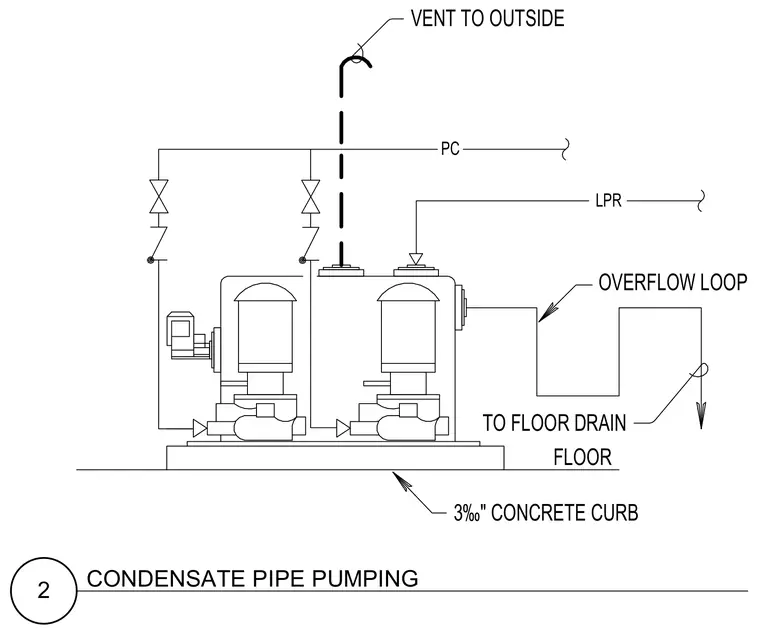

A duplex condensate pump unit sits atop a three-inch concrete curb on the floor slab. Piping includes a condensate return line and pump discharge lines equipped with valves and check valves. A vent line extends to the outside, while an overflow loop routes excess water to a nearby floor drain.
LPR PC 3‰" CONCRETE CURB FLOOR TO FLOOR DRAIN VENT TO OUTSIDE OVERFLOW LOOP 2 CONDENSATE PIPE PUMPING
