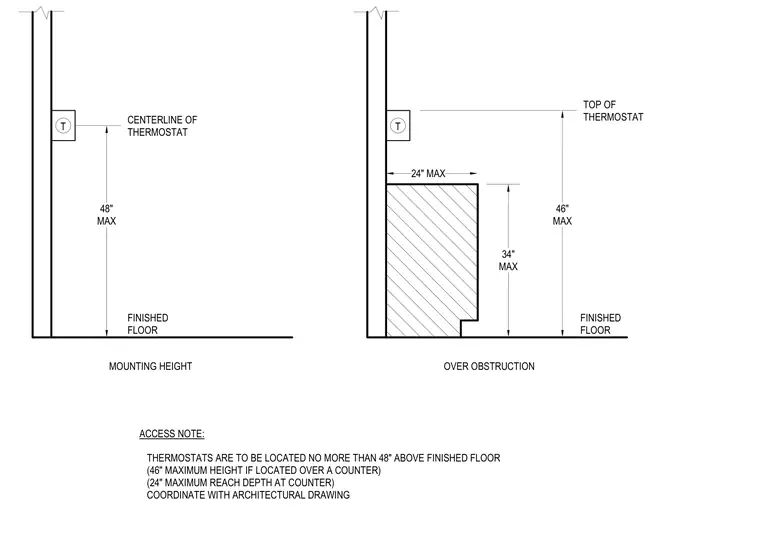

Thermostats must be located no more than forty-eight inches above the finished floor to the centerline for standard installations. When mounted over a counter or obstruction, the maximum height to the top of the thermostat is forty-six inches with a maximum reach depth of twenty-four inches. The counter height is limited to thirty-four inches maximum.
TOP OF THERMOSTAT FINISHED FLOOR 46" MAX 34" MAX 24" MAX T OVER OBSTRUCTION MOUNTING HEIGHT T CENTERLINE OF THERMOSTAT FINISHED FLOOR 48" MAX ACCESS NOTE: THERMOSTATS ARE TO BE LOCATED NO MORE THAN 48" ABOVE FINISHED FLOOR (46" MAXIMUM HEIGHT IF LOCATED OVER A COUNTER) (24" MAXIMUM REACH DEPTH AT COUNTER) COORDINATE WITH ARCHITECTURAL DRAWING
