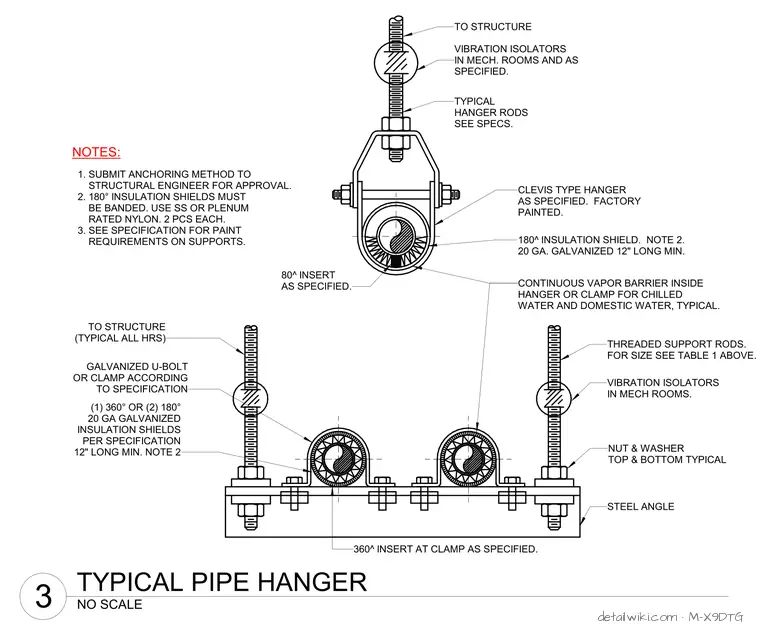

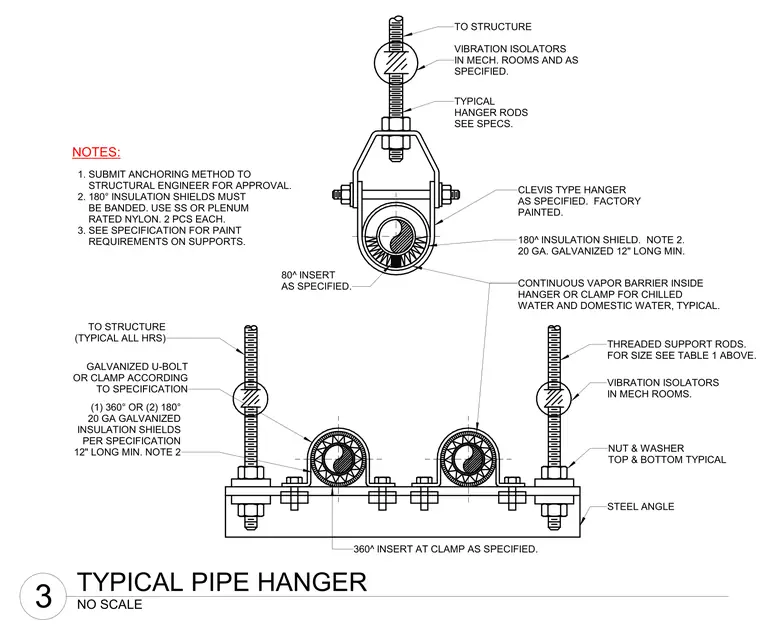

Suspended piping systems are supported by threaded rods attached to the structure with vibration isolators in mechanical rooms. A factory-painted clevis-type hanger supports the insulated pipe, which includes a continuous vapor barrier for chilled and domestic water lines. A one-hundred-eighty-degree or three-hundred-eighty-degree galvanized twenty gauge insulation shield, twelve inches long minimum, is banded around the insulation using stainless steel or plenum-rated nylon. Multiple pipes are alternatively supported on a steel angle trapeze assembly with galvanized U-bolts or clamps and nuts and washers top and bottom. Anchoring methods must be submitted to the structural engineer for approval, and supports must meet specified paint requirements.
80^ INSERT AS SPECIFIED. (1) 360° OR (2) 180° 20 GA GALVANIZED INSULATION SHIELDS PER SPECIFICATION 12" LONG MIN. NOTE 2 GALVANIZED U-BOLT OR CLAMP ACCORDING TO SPECIFICATION TO STRUCTURE (TYPICAL ALL HRS) NOTES: THREADED SUPPORT RODS. FOR SIZE SEE TABLE 1 ABOVE. NUT & WASHER TOP & BOTTOM TYPICAL STEEL ANGLE VIBRATION ISOLATORS IN MECH ROOMS. CONTINUOUS VAPOR BARRIER INSIDE HANGER OR CLAMP FOR CHILLED WATER AND DOMESTIC WATER, TYPICAL. CLEVIS TYPE HANGER AS SPECIFIED. FACTORY PAINTED. 180^ INSULATION SHIELD. NOTE 2. 20 GA. GALVANIZED 12" LONG MIN. 360^ INSERT AT CLAMP AS SPECIFIED. VIBRATION ISOLATORS IN MECH. ROOMS AND AS SPECIFIED. TO STRUCTURE TYPICAL HANGER RODS SEE SPECS. 1. SUBMIT ANCHORING METHOD TO STRUCTURAL ENGINEER FOR APPROVAL. 2. 180° INSULATION SHIELDS MUST BE BANDED. USE SS OR PLENUM RATED NYLON. 2 PCS EACH. 3. SEE SPECIFICATION FOR PAINT REQUIREMENTS ON SUPPORTS. NO SCALE 3 TYPICAL PIPE HANGER
