Mechanical · M-X8Z28

Rooftop Unit Mounting and Vibration Isolation Curb Detail

Materials

Steel Timber / Wood

Elements

Roofs Waterproofing / Flashing Insulation Millwork / Casework Site / Paving Roof / Floor Openings

Connections

Base Plate / Anchorage Welded Connection

About this detail

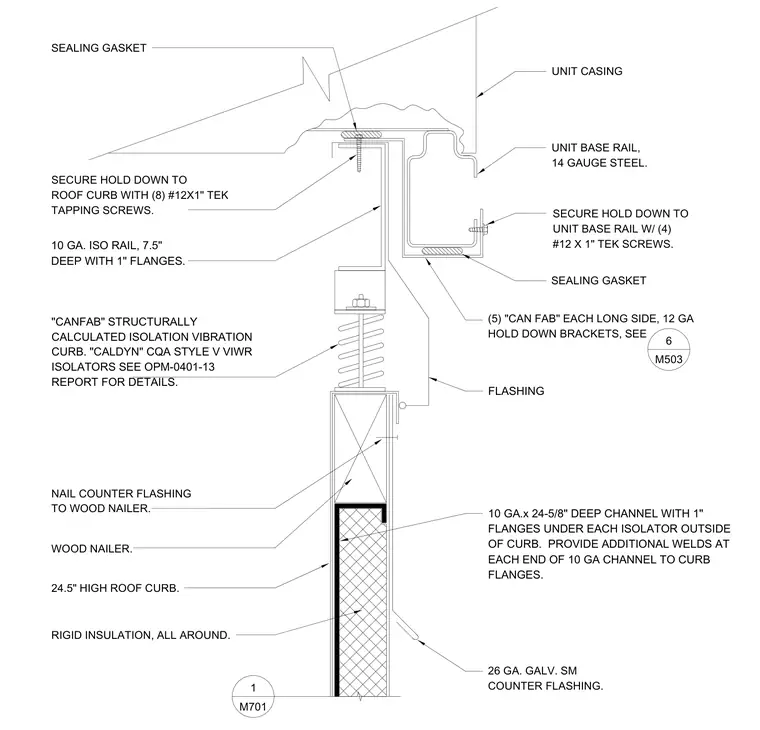

A rooftop equipment unit casing sits on a fourteen gauge steel unit base rail, which is sealed with gaskets and secured with four number twelve by one inch Tek screws into twelve gauge hold down brackets. A ten gauge isolation rail with seven and a half inch deep flanges houses vibration isolators resting on a twenty-four and a half inch high insulated roof curb. A wood nailer tops the curb, receiving twenty-six gauge galvanized sheet metal counter flashing nailed in place. Additional ten gauge channels are welded to the curb flanges beneath each isolator to transfer loads.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
