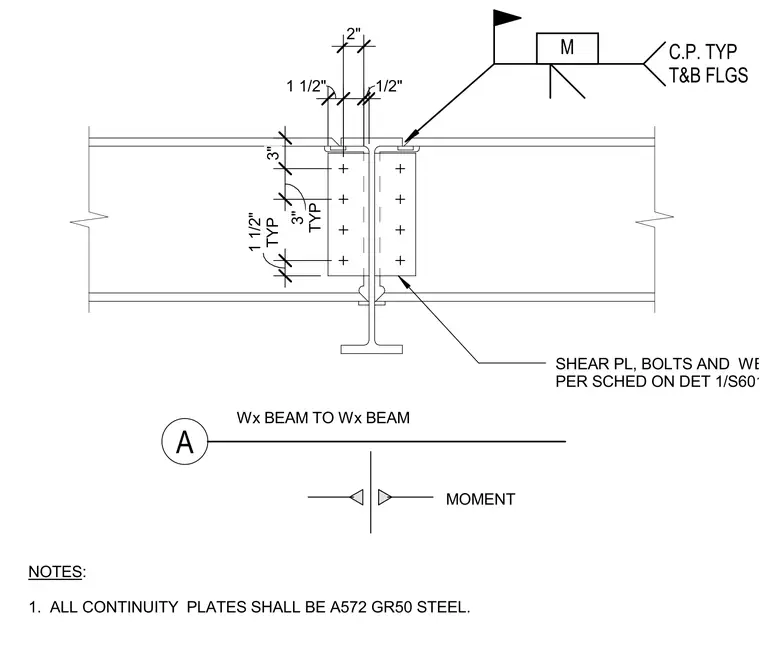

A steel-to-steel moment connection occurs between two wide-flange beams. Typical continuity plates are provided at the top and bottom flanges with welded connections. A shear plate with bolts and welds connects the webs per the schedule on detail 1/S601. All continuity plates are specified as A572 Grade 50 steel.
MOMENT C.P. TYP T&B FLGS M SHEAR PL, BOLTS AND WELD, PER SCHED ON DET 1/S601 1 1/2" 1/2" 2" 3" TYP 3" TYP 1 1/2" NOTES: 1. ALL CONTINUITY PLATES SHALL BE A572 GR50 STEEL. A Wx BEAM TO Wx BEAM
