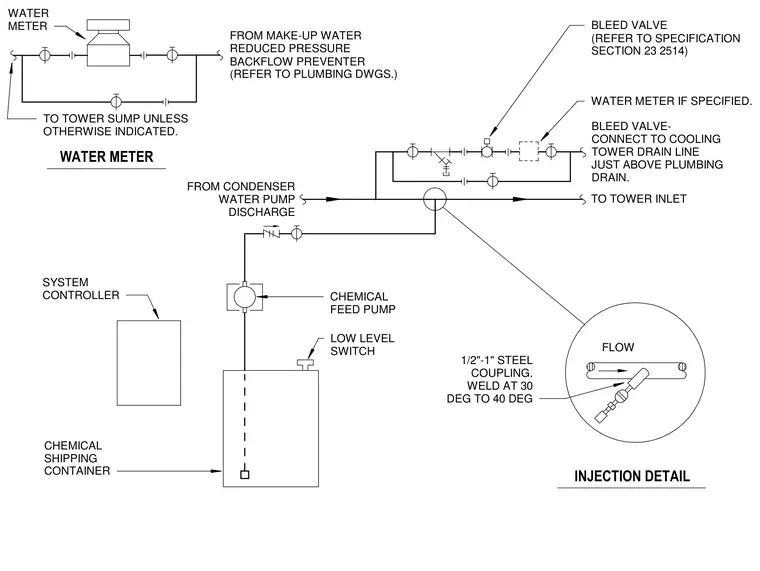

Chemical treatment piping assembly for a condenser water system connecting a chemical shipping container and system controller to the cooling tower inlet. The chemical feed pump draws from the shipping container and discharges into the main line through a half-inch to one-inch steel coupling welded at a thirty to forty degree angle. A bleed valve connects to the cooling tower drain line just above the plumbing drain, while make-up water is supplied through a reduced pressure backflow preventer. A water meter and associated valves are incorporated into the line to monitor flow.
INJECTION DETAIL TO TOWER INLET WATER METER IF SPECIFIED. FLOW WATER METER 1/2"-1" STEEL COUPLING. WELD AT 30 DEG TO 40 DEG LOW LEVEL SWITCH CHEMICAL FEED PUMP BLEED VALVE- CONNECT TO COOLING TOWER DRAIN LINE JUST ABOVE PLUMBING DRAIN. BLEED VALVE (REFER TO SPECIFICATION SECTION 23 2514) FROM MAKE-UP WATER REDUCED PRESSURE BACKFLOW PREVENTER (REFER TO PLUMBING DWGS.) WATER METER TO TOWER SUMP UNLESS OTHERWISE INDICATED. FROM CONDENSER WATER PUMP DISCHARGE SYSTEM CONTROLLER CHEMICAL SHIPPING CONTAINER
