M-X2F44 — Isolated Pipe Saddle Support

Mechanical · M-X2F44

Isolated Pipe Saddle Support

Units: metric
Sheet: M-500
Discipline: Mechanical

Materials

Elements

Anchors / Embeds Floors / Slabs

Connections

Base Plate / Anchorage Bolted Connection

Text on the drawing

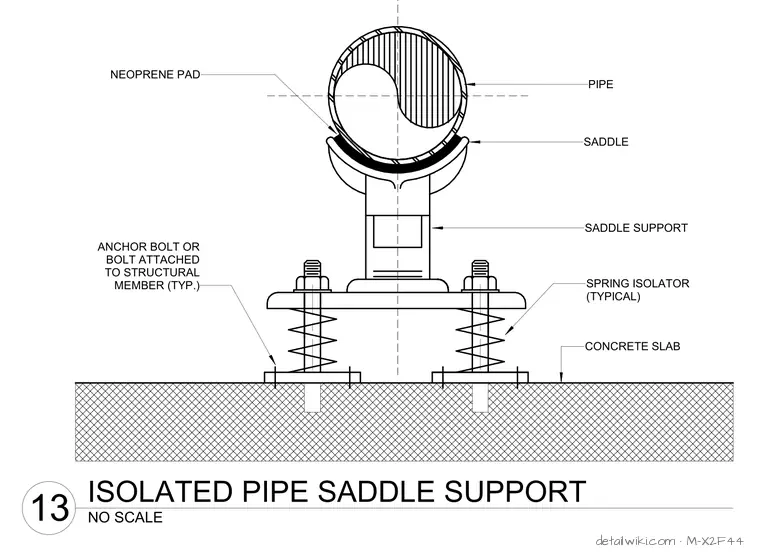

PIPE SADDLE NEOPRENE PAD ANCHOR BOLT OR BOLT ATTACHED TO STRUCTURAL MEMBER (TYP.) SADDLE SUPPORT CONCRETE SLAB SPRING ISOLATOR (TYPICAL) NO SCALE 13 ISOLATED PIPE SADDLE SUPPORT
